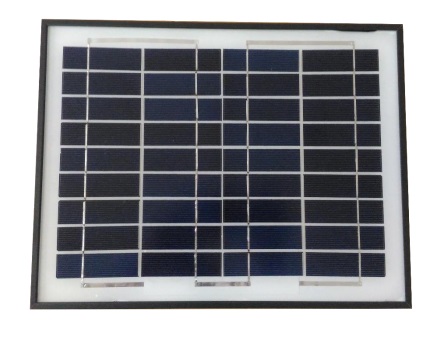

5W 10W 20W
npi
npitechnology.com
Product Information
Peak Power:5W/10W/20W
Short Circuit Current(Isc):0.33A/0.63A/1.23A
Open Circuit Voltage(Voc):21.6V/22.4V/22.4V
Maximum Power Current(Imp):0.30A/0.58A/1.15/A
Maximum PowerVoltage(Vmp):17.2V/17.4V/17.4 V
Dimension:235x280x25mm/300x350x25mm/490x350x25mm
Weight:1.0kg/1.2kg/1.95kg
PDFDownload
|

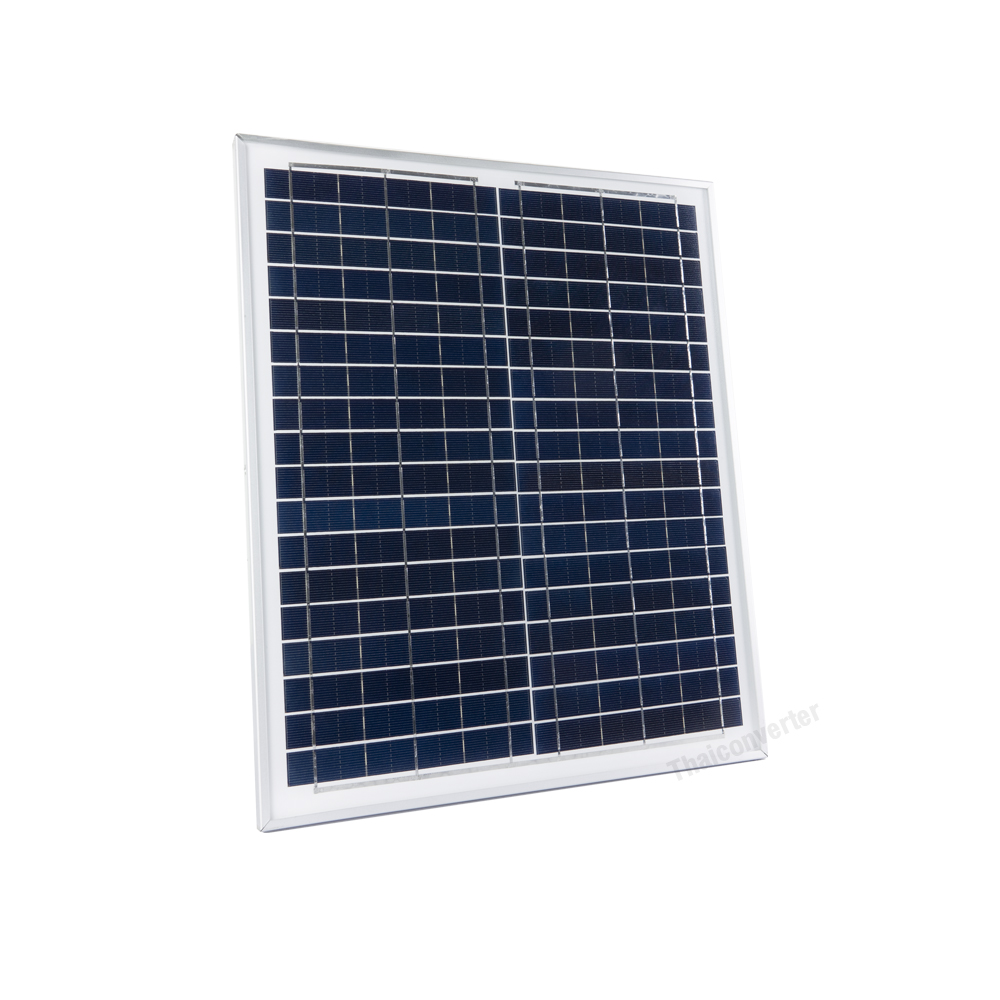

30W 40W 50W
npi
npitechnology.com
Product Information
Peak Power:30W/40W/50W
Short Circuit Current(Isc):1.82A/2.58A/3.04A
Open Circuit Voltage(Voc):22.5V22.5 V/22.5V
Maximum Power Current(Imp):1.70A/2.30A/2.85A
Maximum PowerVoltage(Vmp):17.6V/17.6V/17.6V
Dimension:450x510x25mm/490x670x25mm/700x510x30mm
Weight:2.7kg4.0kg/4.5kg
PDFDownload
|

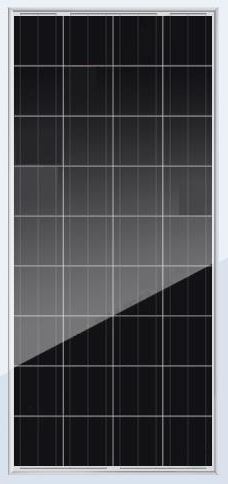

60W 80W 100W
npi
npitechnology.com
Product Information
Peak Power:60W/80W/100W
Short Circuit Current(Isc):3.68A/4.87A/6.09A
Open Circuit Voltage(Voc):22.5V/22.6V/22.6V
Maximum Power Current(Imp):3.45A/4.55A/5.69A
Maximum PowerVoltage(Vmp):17.6V/17.6V/17.6V
Dimension:820x510x30mm/780x670x30mm/1020x670x30mm
Weight:4.9kg/5.9kg/7.7kg
PDFDownload
|
